200000L/H Industrial Water Purification Systems Epoxy Coating Carbon Steel

Water Purification Systems With Epoxy Coating Carbon Steel Material

Overview:

In this water purification plant, raw water is from river. At the begnning, river water will b passed through all in one sedimentation device to remove some big particles, like suspended solid, mud and sand. Then flow to mechanical filters to remove susended solid, colloid and silt. At last to activated carbon filter to remove organic matter, residual chlorine, color, odor and some impurities. All the devices above are sonsist of a perfect pre-treatment system.

The whole system could be controlled automatically by relay, water level detector, pressure transducer or manually by man power. Usually, the system is set to be controlled automatically. The system could provide pure water continuously. It's easy, safe and reliable.

Detail introduction:
1) Piping mixer:
Size:630*180*180mm
Material: Stainless steel material,better corrosion resistance
Function: mixing the chemicals PAC & PAM with water

2) Reaction tank:
Size:500*1500*6000mm
Material: Carbon steel

Function: Space for chemicals reacting with water,removing particles,suspended solids,etc.

3) Sedimentation tank:
Size:2000*1500*3000mm
Material: Carbon steel
Function: Space for flocculants sedimentation

4) Sand filter/Valveless filter:
Size:1500*1700*2000mm
Material: Carbon steel
Function: further purifying water.Valveless filter can backwash water automatically by gravity.

5) Clean water tank
Size:1500*1700*1000mm
Material: Carbon steel
Function: Final purified water will be stored here.

Our advantages are showed below:

• Founder hos more than 16 years in water treatment design & woking experience. And about 20 technicians in our technical team;
• Founded in 2006, with 14 years experience in equipment mnufactuing and large number of exoerienced workers;
• We hace over 6,000 square meters' area & carbon dioxide welding, submerged arc welding, straight seam welding machines and other advanced production equipments;
• We have unique team to follow up production & one complete quality assurance system to ensur good quality equipment before delivery;
• We have 7 partents covering water reuse, water treatment, sewage treatment and other fields;
• Petro China, Coca-Cola, Watson, Doxconn, Erie, KiuKiang Wine, Nanhai Development, Shenzhen Water industry, Taoism Ji industry, Jianlibao Beverage and other famous companies choose us as their best supplier;
• Australia, United States, Canada, Nepal, Sundan, Libya, Nigeria, Indonesa, Philippines, Suriname, Turkey, Pakistan, Iraq, Lebanon, Chile, Singapore, Vietnam, Italy, Uzbekistan, Kenya, Israel, Poland, Egypt, Oman, Germany, Malaysia, Cambodia, Belgium, Norway and other 40 countries are using our equipments;

Choose us: You choose professional! You choose the rest assured!

200000L/H Industrial Water Purification Systems

ISO14001 Industrial Water Purification Systems

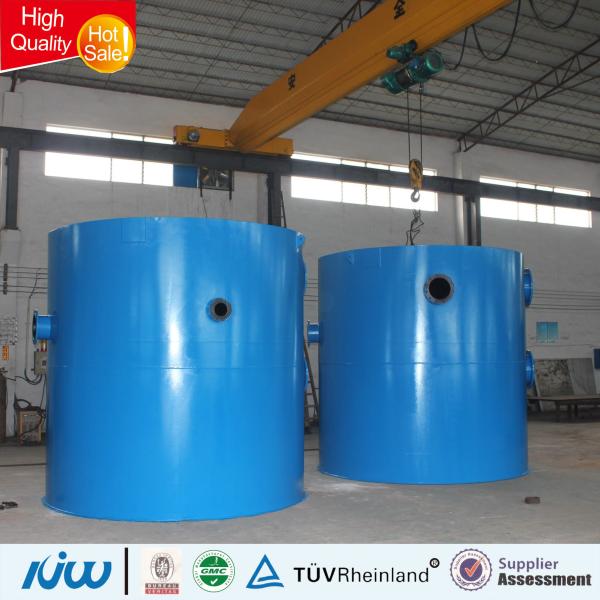

200000L/H Industrial Water Purification Systems Epoxy Coating Carbon Steel Images
